Generic Silicone Module

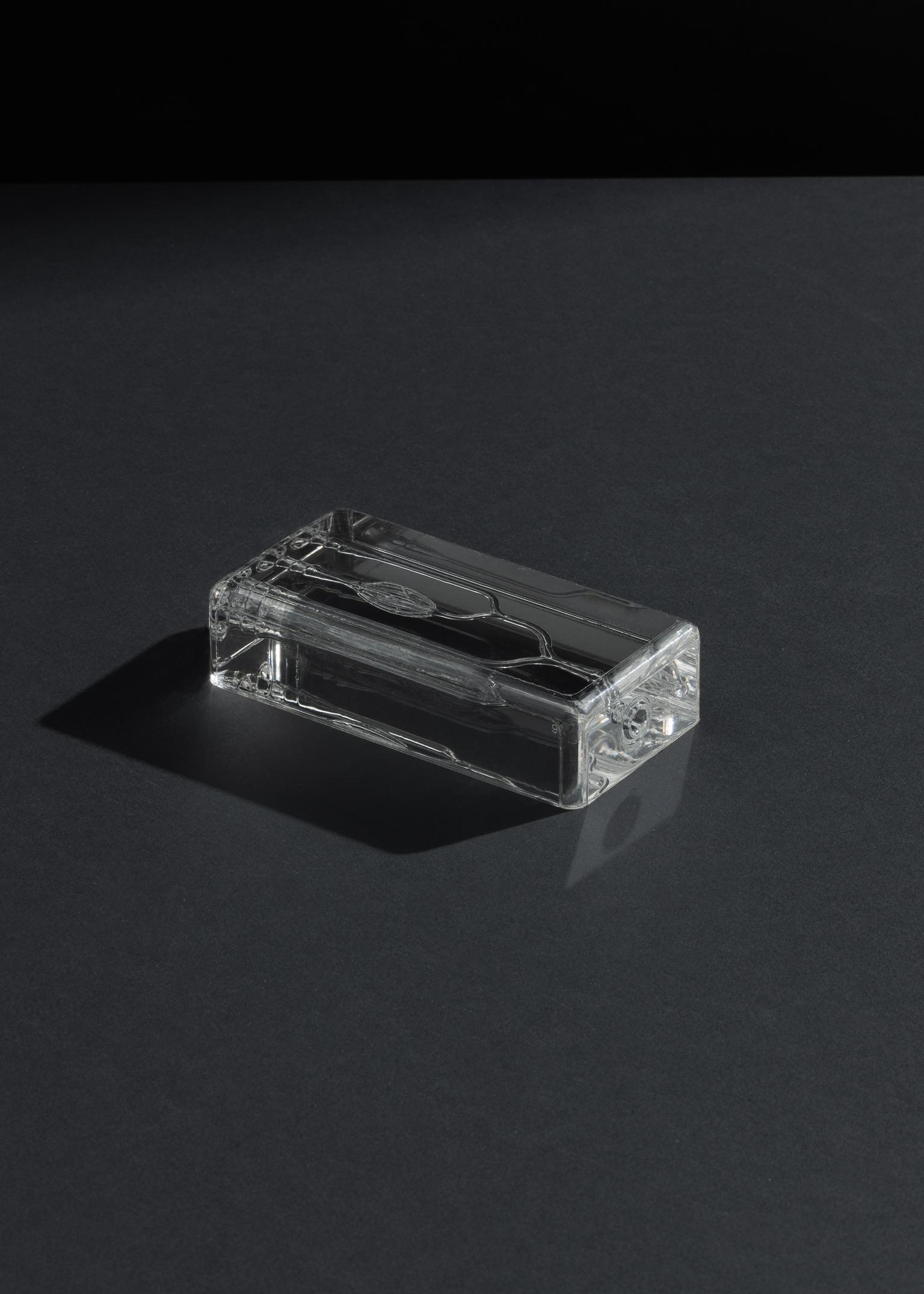

Rete Mirabile

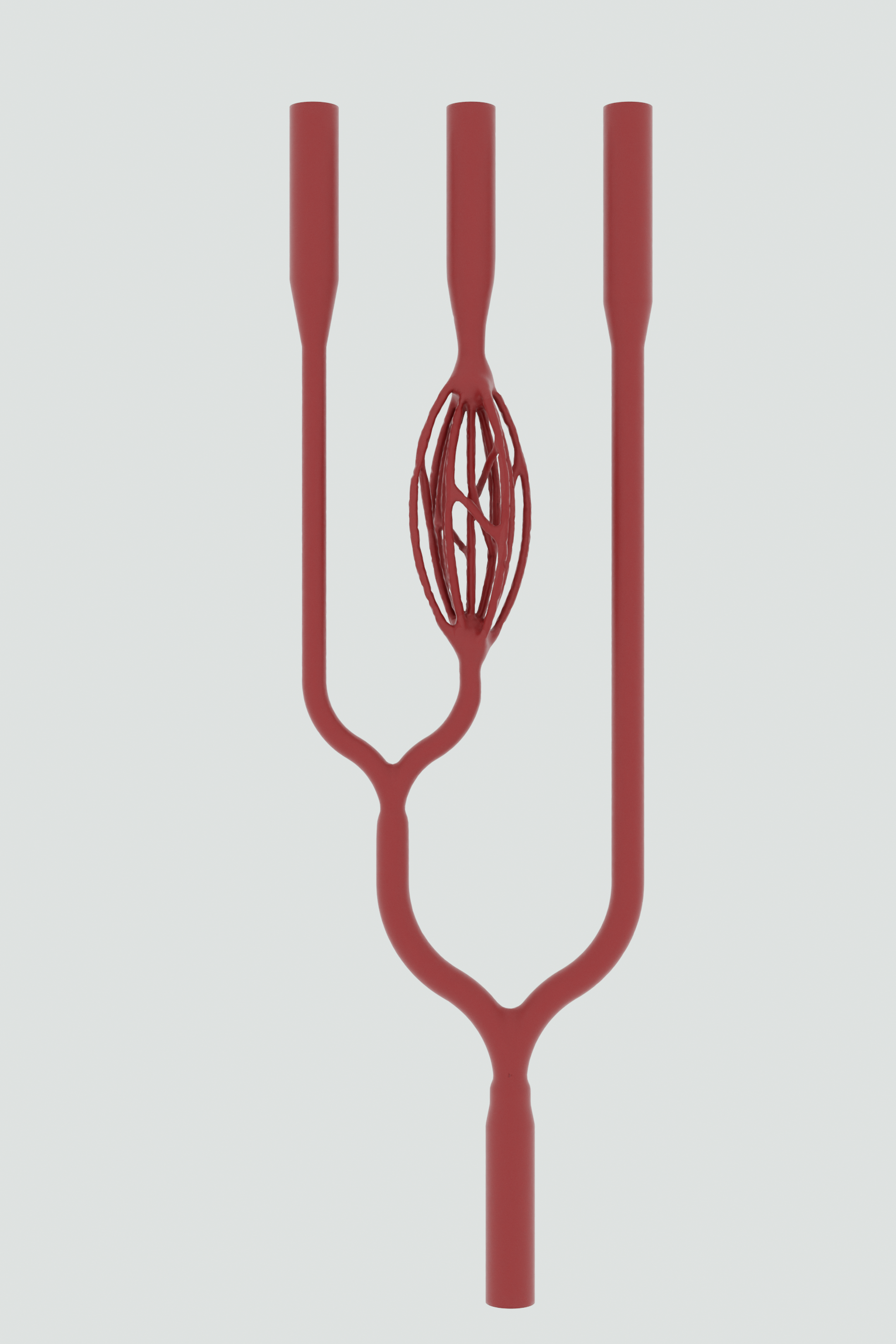

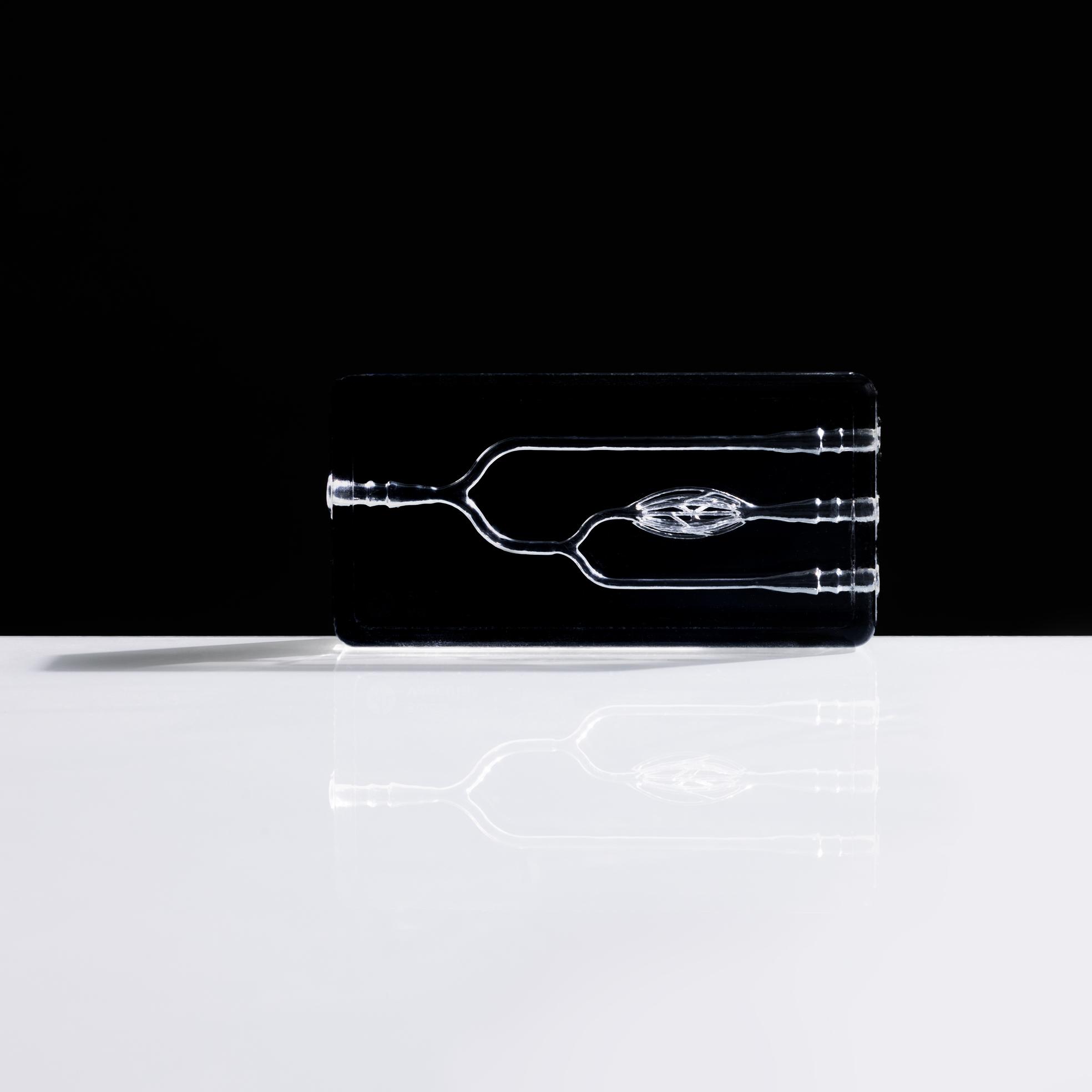

Rete Mirabile combines straight channels of different diameters with a rete-like network in one module. It creates a simple but versatile setup for flow studies, navigation tests in complex structures and experiments where controlled geometry matters more than patient-specific anatomy.

147 × 74 × 36

Dimensions in millimeters

Barb 3/16"

Connector type

850 μm

Smallest vessel diameter

Technical specifications

Model type

Silicone vascular model

Color options (transparent)

Red

Blue

Green

Dimensions

147 × 74 × 36

Mass

400 g

Connector type

Barb 3/16"

Smallest vessel diameter

850 μm

Surface roughness (Ra)

0.05 μm

Coefficient of friction (μCoF)

0.044

Maximum pressure

350 mmHg

Maximum flow

1600 ml/min

Your contact

Fabian will be happy to help you find the right module for your application, whether you are looking for an existing anatomy, a patient-specific case or support choosing the right setup.

Dr. Fabian Landers

CEO

Book a call Write us

Other products

Y-Bifurcation Generic Silicone Module

Cerebral 2D Silicone Brain Module

Bifurcation Expert Generic Silicone Module

Octo Series Generic Silicone Module

S Curve Generic Silicone Module

View all

Caution

Swiss Vascular's products are not medical devices and are not intended for the diagnosis, treatment, cure, or prevention of any health condition. These products are specifically designed for training purposes, and their safety and effectiveness as medical devices have not been validated.
